Parameters

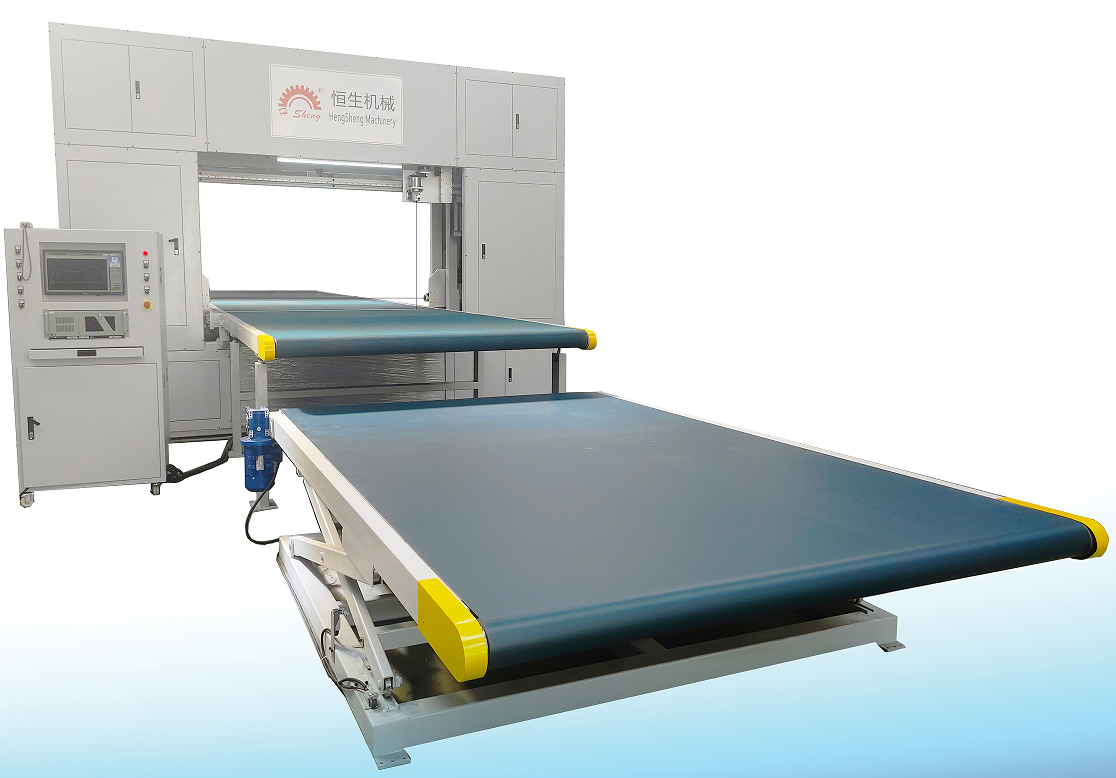

| HSCNC-2200A CNC Contour Cutting Foam Machine | |
|---|---|
| 型号 | HSCNC-2200A |
| Maximum size of cutting foam block | 3000*2000*1200mm |
| Twist angle of blade | ±360° |
| Processing line speed | 0-30m/min |
| workbench surface | Conveyor belt workbench |
| Cutting precision | ±1mm |
| Weight | 7000kg |
| Totalpower | 11.9Kw |
| Servo motor, driver | Mitsubish |
| Computer case | Industrial PC |
| Tool size | 14960x3.5x0.6mm |
| Tool tensioning air | 6 barpressure |
| Optional | Unloading conveyor beltolatform Loading conveyor belt platform |
